Product Introduction
BRC1608TR56M
- Part Number
- BRC1608TR56M
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 560NH 760MA 95 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- BR, C Type
- Quantity
- 21192pcs Stock Available.

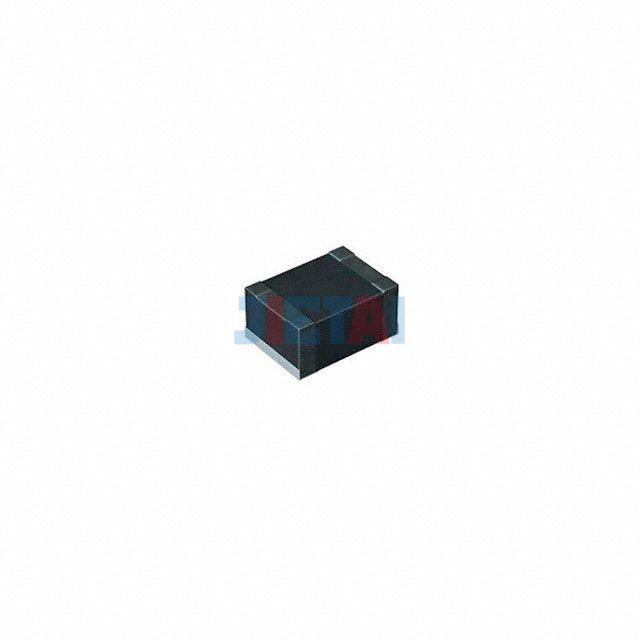

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | BRC1608TR56M |
| Datasheet | BRC1608TR56M datasheet |
| Description | FIXED IND 560NH 760MA 95 MOHM |
| Manufacturer | Taiyo Yuden |
| Series | BR, C Type |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 560nH |
| Tolerance | ±20% |
| Current Rating | 760mA |
| Current - Saturation | 1.15A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 95 mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 170MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
