Product Introduction
M55342H10B294DPWS
- Part Number
- M55342H10B294DPWS
- Manufacturer/Brand
- Vishay Dale
- Description
- RES SMD 294 OHM 1 1/2W 1010
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Military, MIL-PRF-55342, RM1010
- Quantity
- 22pcs Stock Available.

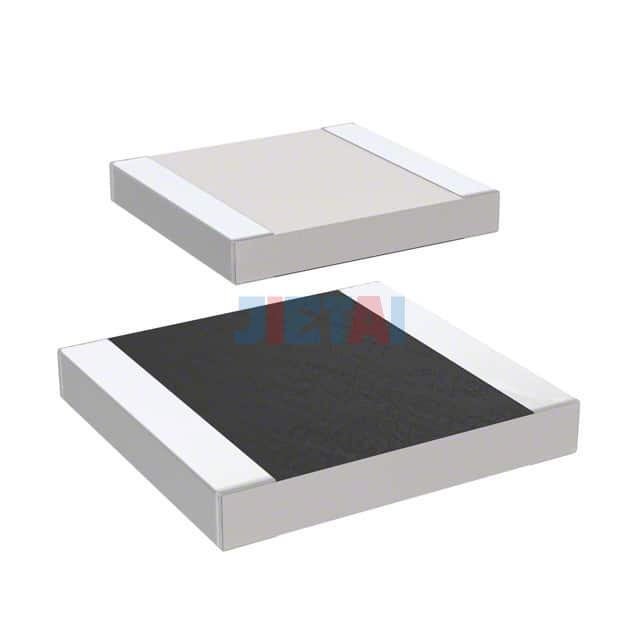

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | M55342H10B294DPWS |
| Datasheet | M55342H10B294DPWS datasheet |
| Description | RES SMD 294 OHM 1 1/2W 1010 |
| Manufacturer | Vishay Dale |
| Series | Military, MIL-PRF-55342, RM1010 |
| Part Status | Active |
| Resistance | 294 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Thin Film |
| Features | Military, Non-Inductive |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | Nonstandard |
| Supplier Device Package | 1010 |
| Size / Dimension | 0.105" L x 0.100" W (2.67mm x 2.54mm) |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Number of Terminations | 2 |
| Failure Rate | P (0.1%) |
