Product Introduction
UWT1A220MCL1GB
- Part Number
- UWT1A220MCL1GB
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 22UF 20 10V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UWT
- Quantity
- 8130pcs Stock Available.

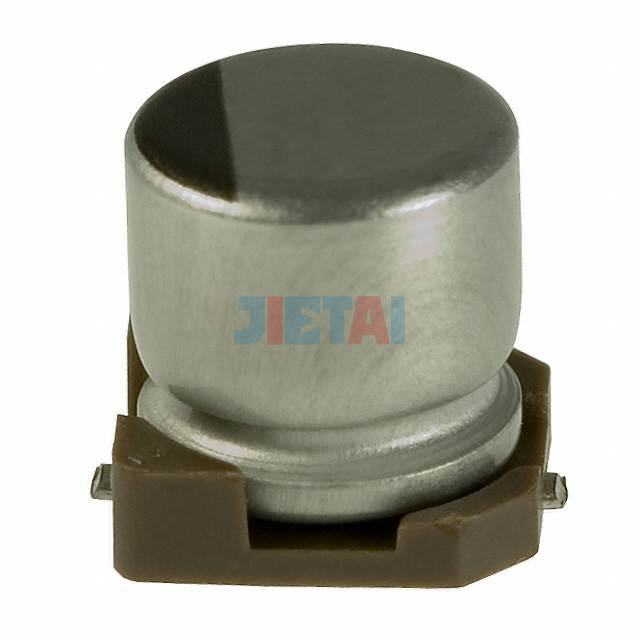

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UWT1A220MCL1GB |
| Datasheet | UWT1A220MCL1GB datasheet |
| Description | CAP ALUM 22UF 20 10V SMD |
| Manufacturer | Nichicon |
| Series | UWT |
| Part Status | Active |
| Capacitance | 22µF |
| Tolerance | ±20% |
| Voltage - Rated | 10V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27mA @ 120Hz |
| Ripple Current @ High Frequency | 40.5mA @ 10kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
