Home / Products / Inductors, Coils, Chokes / Fixed Inductors / NRS6012T1R0NMGJV
Product Introduction
NRS6012T1R0NMGJV
- Part Number
- NRS6012T1R0NMGJV
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 1UH 2.4A 60 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- NR, S Type
- Quantity
- 1199pcs Stock Available.

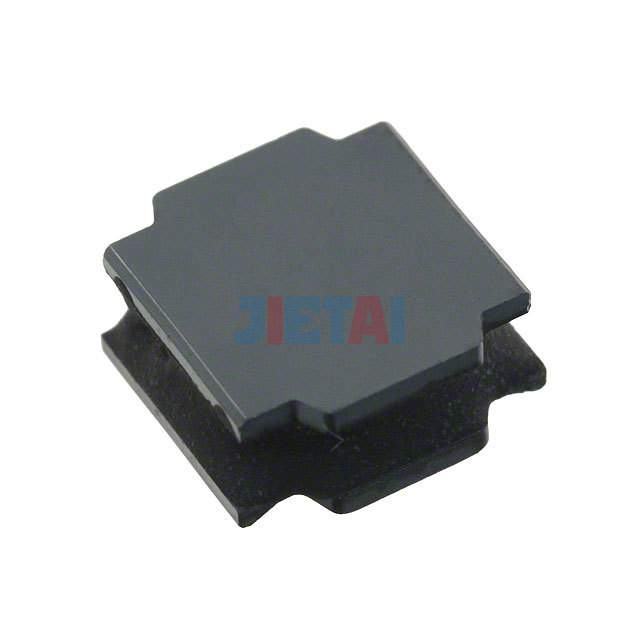

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NRS6012T1R0NMGJV |
| Datasheet | NRS6012T1R0NMGJV datasheet |
| Description | FIXED IND 1UH 2.4A 60 MOHM SMD |
| Manufacturer | Taiyo Yuden |
| Series | NR, S Type |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 1µH |
| Tolerance | ±30% |
| Current Rating | 2.4A |
| Current - Saturation | 3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 60 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 95MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
