Product Introduction
280580-2
- Part Number
- 280580-2
- Manufacturer/Brand
- TE Connectivity AMP Connectors
- Description
- CONN RCPT 12POS 0.1 GOLD PCB R/A
- RoHs Status
- Lead free / RoHS Compliant
- Series
- AMPMODU Mod II
- Quantity
- 2141pcs Stock Available.

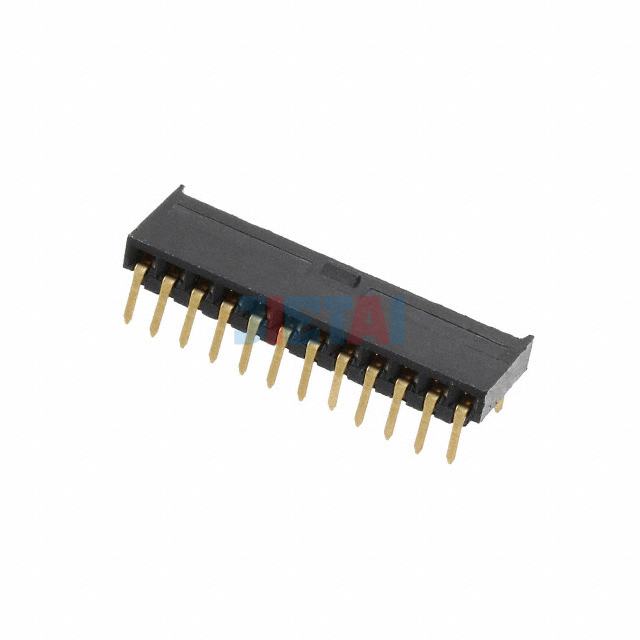

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 280580-2 |
| Datasheet | 280580-2 datasheet |
| Description | CONN RCPT 12POS 0.1 GOLD PCB R/A |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | AMPMODU Mod II |
| Part Status | Obsolete |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) |
| Insulation Color | Black |
| Insulation Height | 0.157" (4.00mm) |
| Contact Length - Post | 0.138" (3.50mm) |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating | - |
| Voltage Rating | - |
