Product Introduction
PF0560.104NL
- Part Number
- PF0560.104NL
- Manufacturer/Brand
- Pulse Electronics Power
- Description
- FIXED IND 100UH 1.25A 304 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- PF0560NL
- Quantity
- 2544pcs Stock Available.

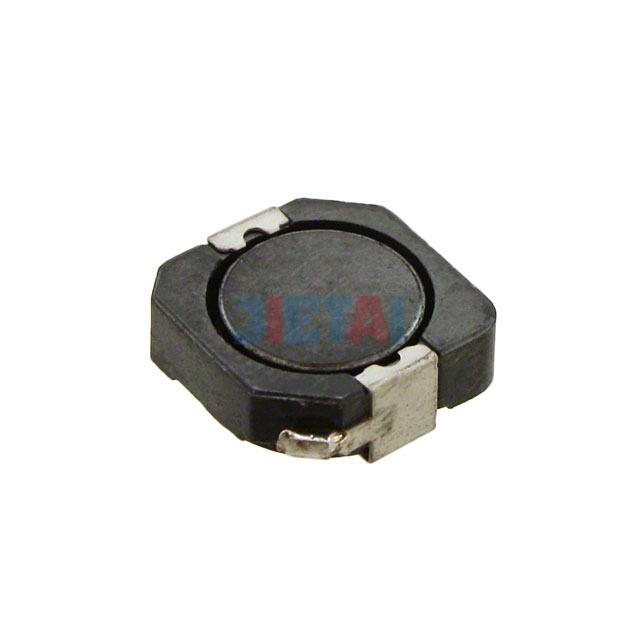

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PF0560.104NL |
| Datasheet | PF0560.104NL datasheet |
| Description | FIXED IND 100UH 1.25A 304 MOHM |
| Manufacturer | Pulse Electronics Power |
| Series | PF0560NL |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 100µH |
| Tolerance | ±25% |
| Current Rating | 1.25A |
| Current - Saturation | 1.35A |
| Shielding | Shielded |
| DC Resistance (DCR) | 304 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 6.6MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.409" L x 0.406" W (10.40mm x 10.30mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
