Product Introduction
UUG0J332MNQ6ZD
- Part Number
- UUG0J332MNQ6ZD
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 3300UF 20 6.3V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UUG
- Quantity
- 18pcs Stock Available.

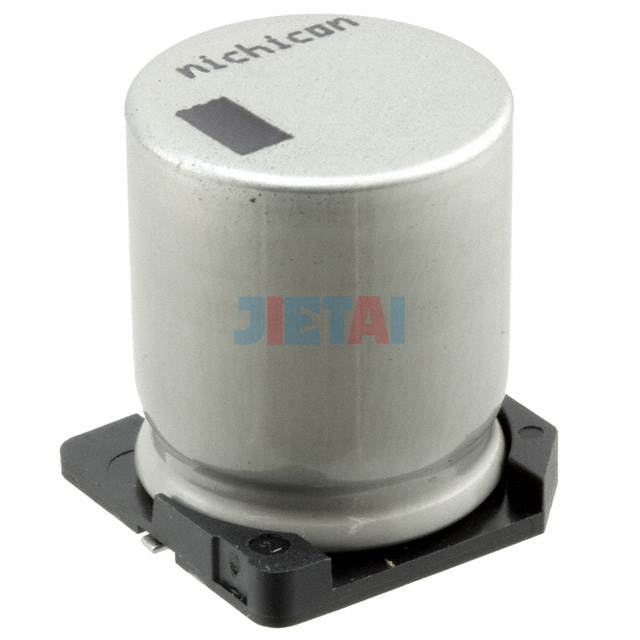

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UUG0J332MNQ6ZD |
| Datasheet | UUG0J332MNQ6ZD datasheet |
| Description | CAP ALUM 3300UF 20 6.3V SMD |
| Manufacturer | Nichicon |
| Series | UUG |
| Part Status | Active |
| Capacitance | 3300µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2A @ 120Hz |
| Ripple Current @ High Frequency | 1.38A @ 10kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
