Product Introduction
09152092603
- Part Number
- 09152092603
- Manufacturer/Brand
- HARTING
- Description
- CONN MALE INSERT 9POS SOLDER CUP
- Category
- Circular Connectors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Han® R23
- Quantity
- 5808pcs Stock Available.

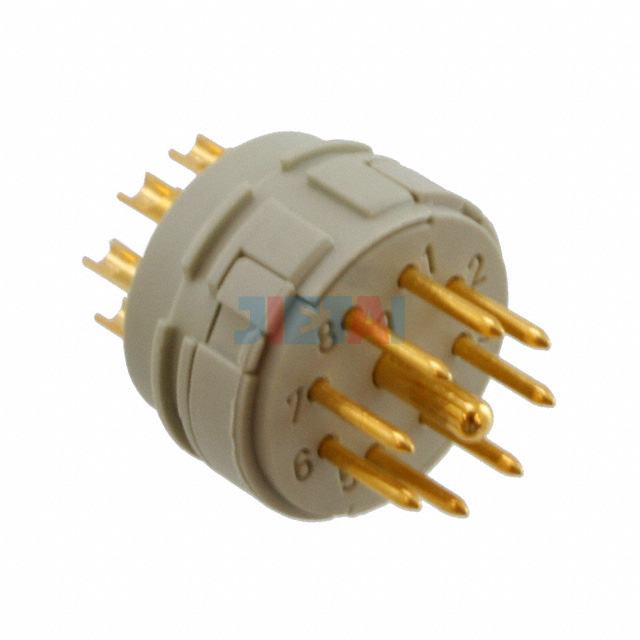

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 09152092603 |
| Datasheet | 09152092603 datasheet |
| Description | CONN MALE INSERT 9POS SOLDER CUP |
| Manufacturer | HARTING |
| Series | Han® R23 |
| Part Status | Obsolete |
| Connector Type | Insert, Male Pins |
| Number of Positions | 9 |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Mounting Type | - |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | - |
| Orientation | - |
| Shell Material | - |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Features | Insert Only, Requires Shell |
| Shielding | Unshielded |
| Current Rating | 7A, 15A |
| Voltage Rating | - |
| Operating Temperature | -40°C ~ 115°C |
