Product Introduction
SP1120RFT
- Part Number
- SP1120RFT
- Manufacturer/Brand
- TE Connectivity Passive Product
- Description
- RES SMD 120 OHM 1 1.5W 2615
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SP, CGS
- Quantity
- 12pcs Stock Available.

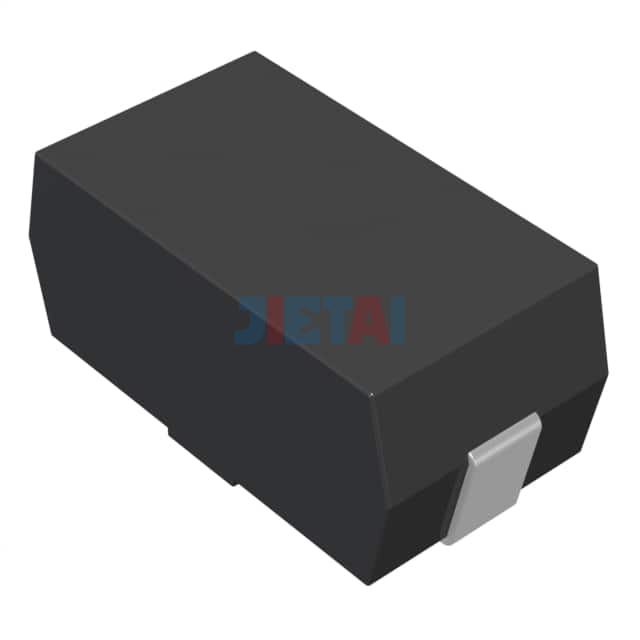

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SP1120RFT |
| Datasheet | SP1120RFT datasheet |
| Description | RES SMD 120 OHM 1 1.5W 2615 |
| Manufacturer | TE Connectivity Passive Product |
| Series | SP, CGS |
| Part Status | Active |
| Resistance | 120 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 1.5W |
| Composition | Wirewound |
| Features | Current Sense, Moisture Resistant |
| Temperature Coefficient | ±20ppm/°C |
| Operating Temperature | - |
| Package / Case | 2615 J-Lead |
| Supplier Device Package | SMD |
| Size / Dimension | 0.255" L x 0.150" W (6.48mm x 3.81mm) |
| Height - Seated (Max) | 0.112" (2.84mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
