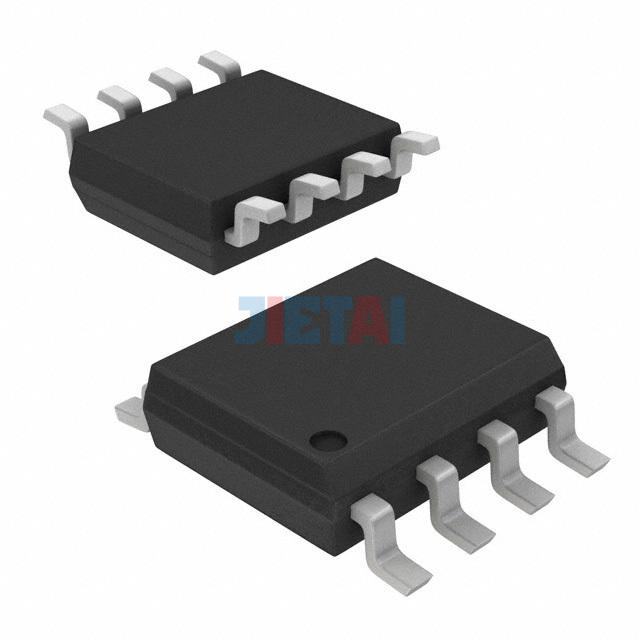

NCP5109ADR2G
- Part Number
- NCP5109ADR2G
- Manufacturer/Brand
- ON Semiconductor
- Description
- IC DRIVER HI/LOW SIDE HV
- Category
- PMIC - Gate Drivers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 5pcs Stock Available.
Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NCP5109ADR2G |
| Datasheet | NCP5109ADR2G datasheet |
| Description | IC DRIVER HI/LOW SIDE HV |
| Manufacturer | ON Semiconductor |
| Series | - |
| Part Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.3V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 200V |
| Rise / Fall Time (Typ) | 85ns, 35ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
