Product Introduction
LDS0705-150M-R
- Part Number
- LDS0705-150M-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 15UH 2.04A 56 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LDS0705
- Quantity
- 3593pcs Stock Available.

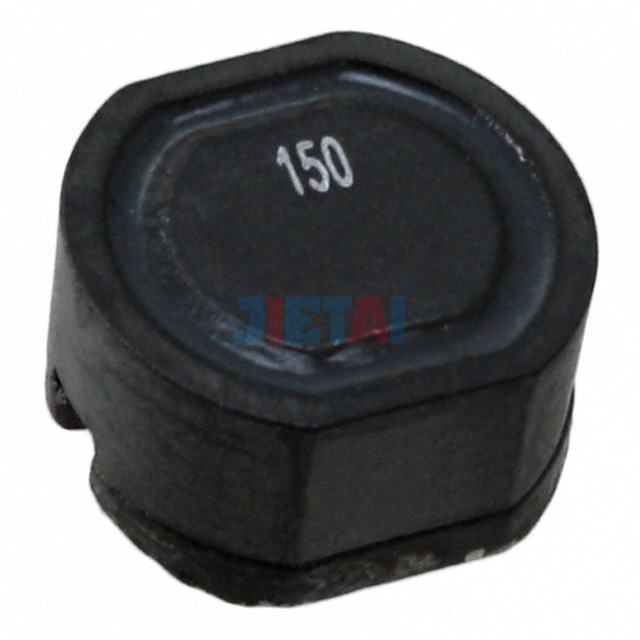

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LDS0705-150M-R |
| Datasheet | LDS0705-150M-R datasheet |
| Description | FIXED IND 15UH 2.04A 56 MOHM SMD |
| Manufacturer | Eaton - Electronics Division |
| Series | LDS0705 |
| Part Status | Obsolete |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 15µH |
| Tolerance | ±20% |
| Current Rating | 2.04A |
| Current - Saturation | 2.07A |
| Shielding | Shielded |
| DC Resistance (DCR) | 56 mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
