Product Introduction
L0806B120JSWST
- Part Number
- L0806B120JSWST
- Manufacturer/Brand
- KEMET
- Description
- INDUCTORSIGNAL LINE 0806 12H 5
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- L-SWS
- Quantity
- 23pcs Stock Available.

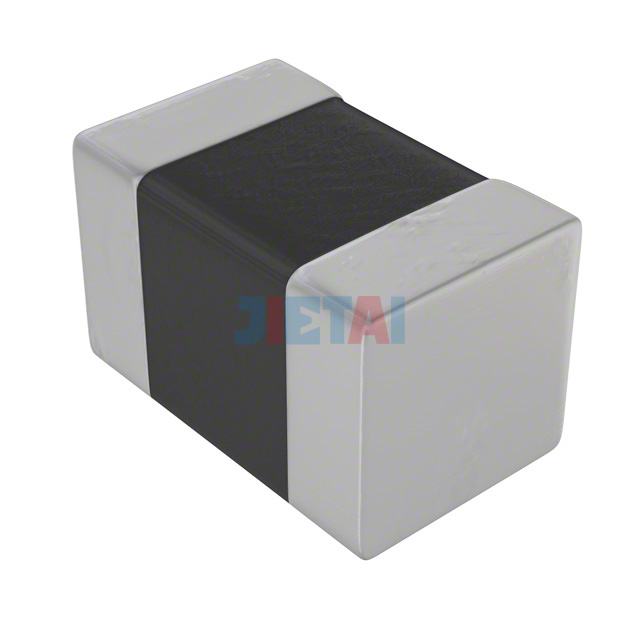

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | L0806B120JSWST |
| Datasheet | L0806B120JSWST datasheet |
| Description | INDUCTORSIGNAL LINE 0806 12H 5 |
| Manufacturer | KEMET |
| Series | L-SWS |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 12µH |
| Tolerance | ±5% |
| Current Rating | 200mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.4 Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | 23MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
