Product Introduction
MC78L12ACDG
- Part Number
- MC78L12ACDG
- Manufacturer/Brand
- ON Semiconductor
- Description
- IC REG LINEAR 12V 100MA 8SOIC
- Category
- PMIC - Voltage Regulators - Linear
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 138pcs Stock Available.

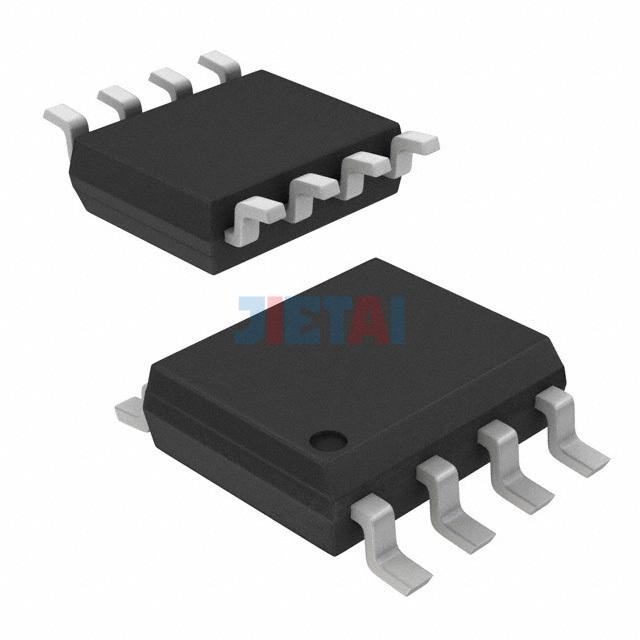

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MC78L12ACDG |
| Datasheet | MC78L12ACDG datasheet |
| Description | IC REG LINEAR 12V 100MA 8SOIC |
| Manufacturer | ON Semiconductor |
| Series | - |
| Part Status | Last Time Buy |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 6.5mA |
| Current - Supply (Max) | - |
| PSRR | 42dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
