Product Introduction
HC2-2R2-R
- Part Number
- HC2-2R2-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 2.2UH 24.3A 2.3 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HC2
- Quantity
- 344pcs Stock Available.

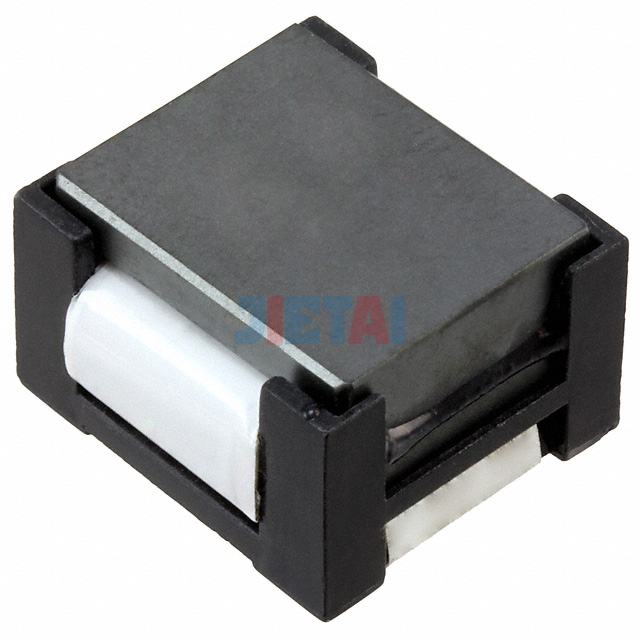

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HC2-2R2-R |
| Datasheet | HC2-2R2-R datasheet |
| Description | FIXED IND 2.2UH 24.3A 2.3 MOHM |
| Manufacturer | Eaton - Electronics Division |
| Series | HC2 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 2.2µH |
| Tolerance | ±20% |
| Current Rating | 24.3A |
| Current - Saturation | 31.9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.3 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 300kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.756" L x 0.748" W (19.20mm x 19.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
