Product Introduction
LNY2G152MSEF
- Part Number
- LNY2G152MSEF
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 1500UF 20 400V SCREW
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LNY
- Quantity
- 21pcs Stock Available.

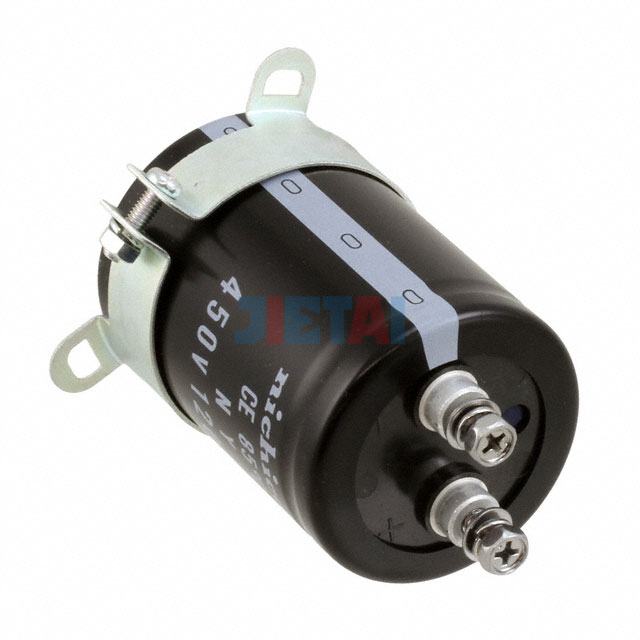

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LNY2G152MSEF |
| Datasheet | LNY2G152MSEF datasheet |
| Description | CAP ALUM 1500UF 20 400V SCREW |
| Manufacturer | Nichicon |
| Series | LNY |
| Part Status | Active |
| Capacitance | 1500µF |
| Tolerance | ±20% |
| Voltage - Rated | 400V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.1A @ 120Hz |
| Ripple Current @ High Frequency | 11.34A @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 2.953" (75.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
