Product Introduction

NVF3055-100T1G

Part Number
NVF3055-100T1G
Manufacturer/Brand
ON Semiconductor
Description
MOSFET N-CH 60V 3A SOT223
Category
Transistors - FETs, MOSFETs - Single
RoHs Status
Lead free / RoHS Compliant
Series
Automotive, AEC-Q101
Quantity
1172pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

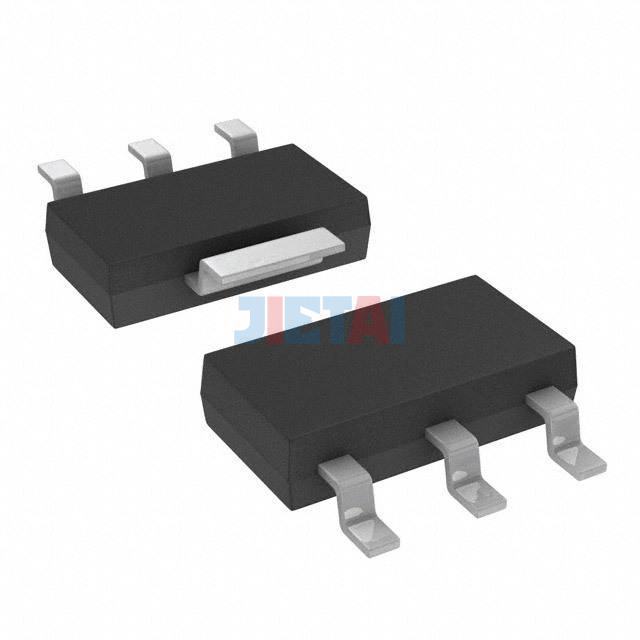

Images are for reference only
See Product Specifications

Product Specifications

Part Number NVF3055-100T1G
Datasheet NVF3055-100T1G datasheet
Description MOSFET N-CH 60V 3A SOT223
Manufacturer ON Semiconductor
Series Automotive, AEC-Q101
Part Status Not For New Designs
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25°C 3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 110 mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 22nC @ 10V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 455pF @ 25V
FET Feature -
Power Dissipation (Max) 1.3W (Ta)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package SOT-223
Package / Case TO-261-4, TO-261AA
