Product Introduction
PESD3V6Z1BCSFYL
- Part Number
- PESD3V6Z1BCSFYL
- Manufacturer/Brand
- Nexperia USA Inc.
- Description
- PESD3V6Z1BCSF/SOD962/SOD962
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- TrEOS
- Quantity
- 8pcs Stock Available.

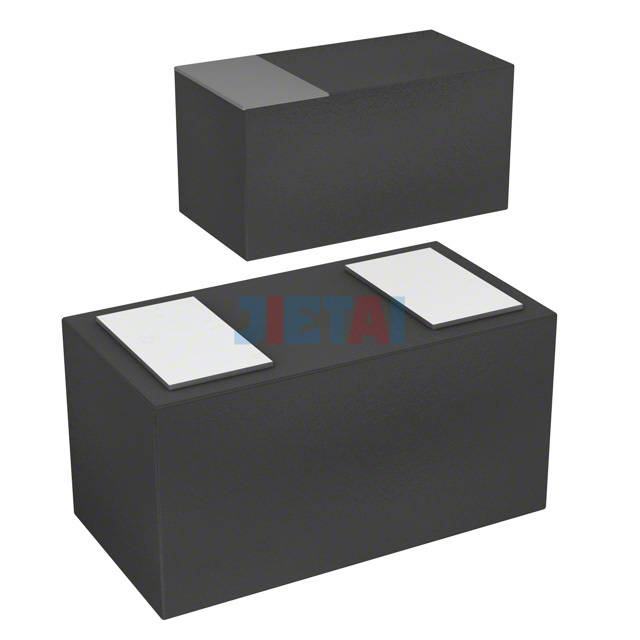

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PESD3V6Z1BCSFYL |
| Datasheet | PESD3V6Z1BCSFYL datasheet |
| Description | PESD3V6Z1BCSF/SOD962/SOD962 |
| Manufacturer | Nexperia USA Inc. |
| Series | TrEOS |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | - |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 3.6V (Max) |
| Voltage - Breakdown (Min) | 6.8V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 4.8V (Typ) |
| Current - Peak Pulse (10/1000µs) | 15A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.45pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | DSN0603-2 |
