Product Introduction

HQCEMM5R6BAH6A

Part Number
HQCEMM5R6BAH6A
Manufacturer/Brand
AVX Corporation
Description
CAP CER 5.6PF 7.2KV P90 3838
Category
Ceramic Capacitors
RoHs Status
Lead free / RoHS Compliant
Series
Hi-Q®
Quantity
146pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

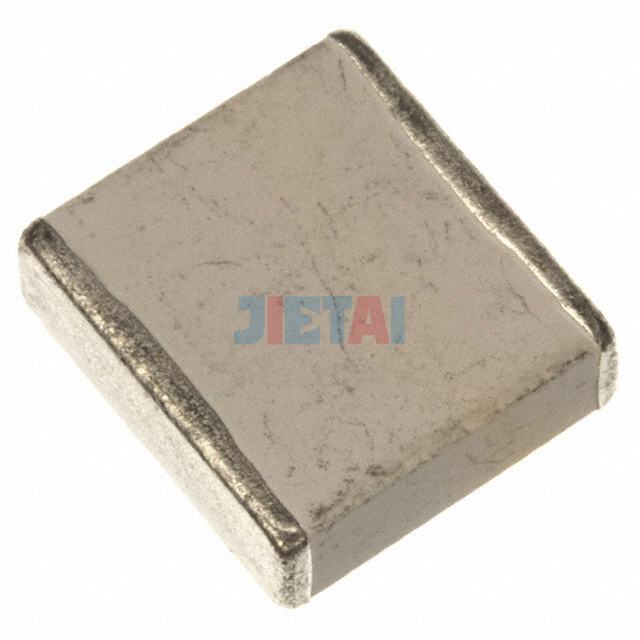

Images are for reference only
See Product Specifications

Product Specifications

Part Number HQCEMM5R6BAH6A
Datasheet HQCEMM5R6BAH6A datasheet
Description CAP CER 5.6PF 7.2KV P90 3838
Manufacturer AVX Corporation
Series Hi-Q®
Part Status Active
Capacitance 5.6pF
Tolerance ±0.1pF
Voltage - Rated 7200V (7.2kV)
Temperature Coefficient P90
Operating Temperature -55°C ~ 125°C
Features High Q, Low Loss, Ultra Low ESR, High Voltage
Ratings -
Applications RF, Microwave, High Frequency
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 3838 (9797 Metric)
Size / Dimension 0.380" L x 0.380" W (9.65mm x 9.65mm)
Height - Seated (Max) -
Thickness (Max) 0.170" (4.32mm)
Lead Spacing -
Lead Style -
