Product Introduction
M55342K11B14E7RWSV
- Part Number
- M55342K11B14E7RWSV
- Manufacturer/Brand
- Vishay Dale
- Description
- RES SMD 14.7K OHM 1 1/20W 0402
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Military, MIL-PRF-55342, RM0402
- Quantity
- 22pcs Stock Available.

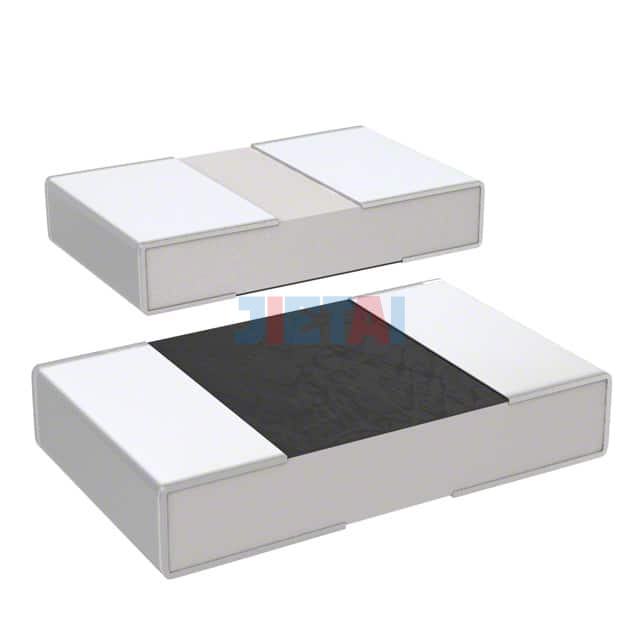

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | M55342K11B14E7RWSV |
| Datasheet | M55342K11B14E7RWSV datasheet |
| Description | RES SMD 14.7K OHM 1 1/20W 0402 |
| Manufacturer | Vishay Dale |
| Series | Military, MIL-PRF-55342, RM0402 |
| Part Status | Active |
| Resistance | 14.7 kOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.05W, 1/20W |
| Composition | Thin Film |
| Features | Military, Non-Inductive |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.040" L x 0.025" W (1.02mm x 0.64mm) |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Number of Terminations | 2 |
| Failure Rate | R (0.01%) |
