Product Introduction
1SMB120AT3G
- Part Number
- 1SMB120AT3G
- Manufacturer/Brand
- Littelfuse Inc.
- Description
- TVS DIODE 120V 193V SMB
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 475pcs Stock Available.

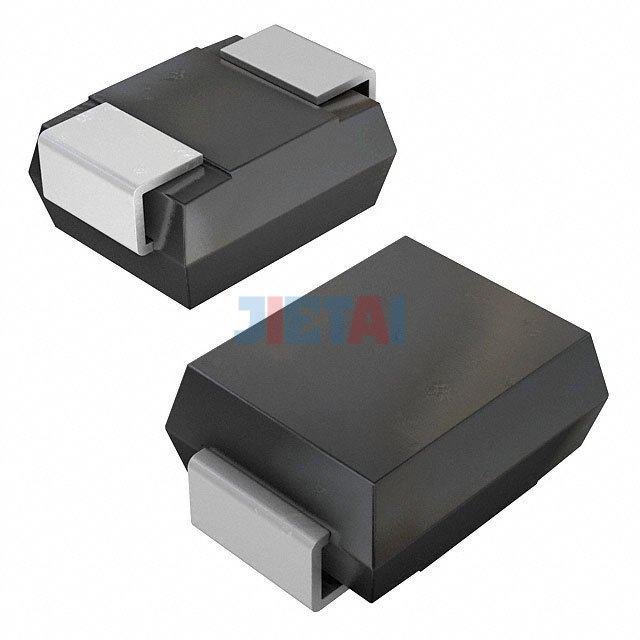

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 1SMB120AT3G |
| Datasheet | 1SMB120AT3G datasheet |
| Description | TVS DIODE 120V 193V SMB |
| Manufacturer | Littelfuse Inc. |
| Series | - |
| Part Status | Obsolete |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 120V |
| Voltage - Breakdown (Min) | 133V |
| Voltage - Clamping (Max) @ Ipp | 193V |
| Current - Peak Pulse (10/1000µs) | 3.1A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 160pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
