Product Introduction
RJL5012DPP-M0#T2
- Part Number
- RJL5012DPP-M0#T2
- Manufacturer/Brand
- Renesas Electronics America
- Description
- MOSFET N-CH 500V 12A TO220
- Category
- Transistors - FETs, MOSFETs - Single
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 9684pcs Stock Available.

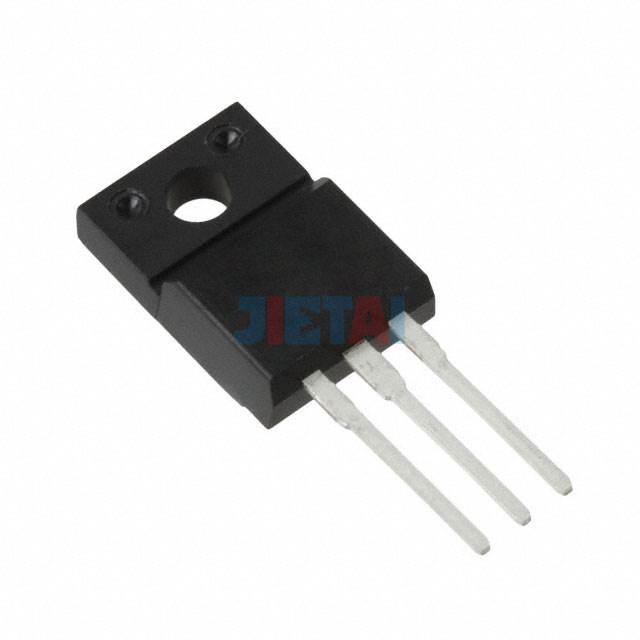

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | RJL5012DPP-M0#T2 |
| Datasheet | RJL5012DPP-M0#T2 datasheet |
| Description | MOSFET N-CH 500V 12A TO220 |
| Manufacturer | Renesas Electronics America |
| Series | - |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 700 mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 27.8nC @ 10V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1050pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 30W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220FL |
| Package / Case | TO-220-3 Full Pack |
