Product Introduction
LHL10TB120K
- Part Number
- LHL10TB120K
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 12UH 2.8A 38 MOHM TH
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LH, L Type
- Quantity
- 5pcs Stock Available.

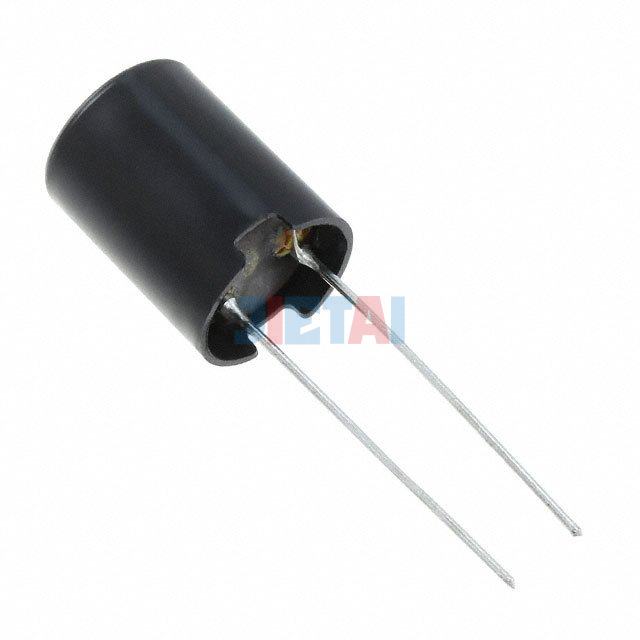

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LHL10TB120K |
| Datasheet | LHL10TB120K datasheet |
| Description | FIXED IND 12UH 2.8A 38 MOHM TH |
| Manufacturer | Taiyo Yuden |
| Series | LH, L Type |
| Part Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 12µH |
| Tolerance | ±10% |
| Current Rating | 2.8A |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 38 mOhm Max |
| Q @ Freq | 90 @ 2.52MHz |
| Frequency - Self Resonant | 16MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 2.52MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
