Product Introduction
UCJ1E220MCL1GS
- Part Number
- UCJ1E220MCL1GS
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 22UF 20 25V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UCJ
- Quantity
- 19pcs Stock Available.

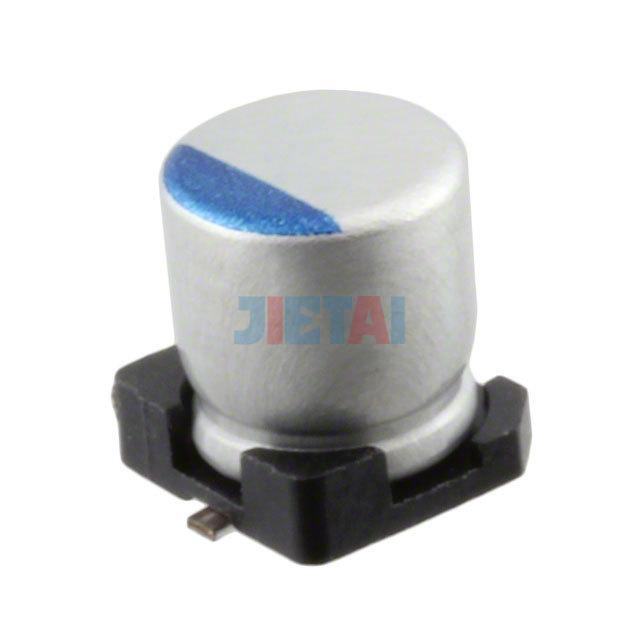

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UCJ1E220MCL1GS |
| Datasheet | UCJ1E220MCL1GS datasheet |
| Description | CAP ALUM 22UF 20 25V SMD |
| Manufacturer | Nichicon |
| Series | UCJ |
| Part Status | Active |
| Capacitance | 22µF |
| Tolerance | ±20% |
| Voltage - Rated | 25V |
| ESR (Equivalent Series Resistance) | 14 Ohm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 47.5mA @ 120Hz |
| Ripple Current @ High Frequency | 95mA @ 100kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
