Product Introduction
RCS0402309KFKED
- Part Number
- RCS0402309KFKED
- Manufacturer/Brand
- Vishay Dale
- Description
- RES SMD 309K OHM 1 1/5W 0402
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- RCS
- Quantity
- 12pcs Stock Available.

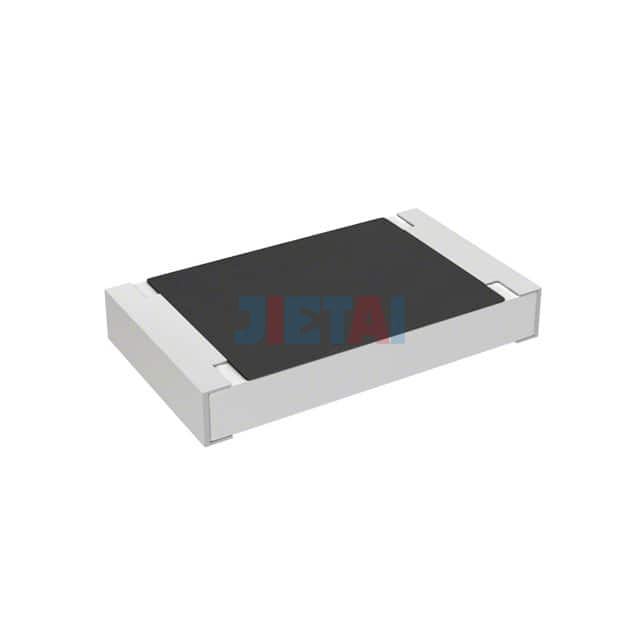

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | RCS0402309KFKED |
| Datasheet | RCS0402309KFKED datasheet |
| Description | RES SMD 309K OHM 1 1/5W 0402 |
| Manufacturer | Vishay Dale |
| Series | RCS |
| Part Status | Active |
| Resistance | 309 kOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.2W, 1/5W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.016" (0.40mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
