Product Introduction

PT6947A

Part Number
PT6947A
Manufacturer/Brand
Texas Instruments
Description
DC DC CONVERTER 2.5V 1.5V
Category
DC DC Converters
RoHs Status
Lead free / RoHS Compliant
Series
Excalibur™ PT6940
Quantity
22pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

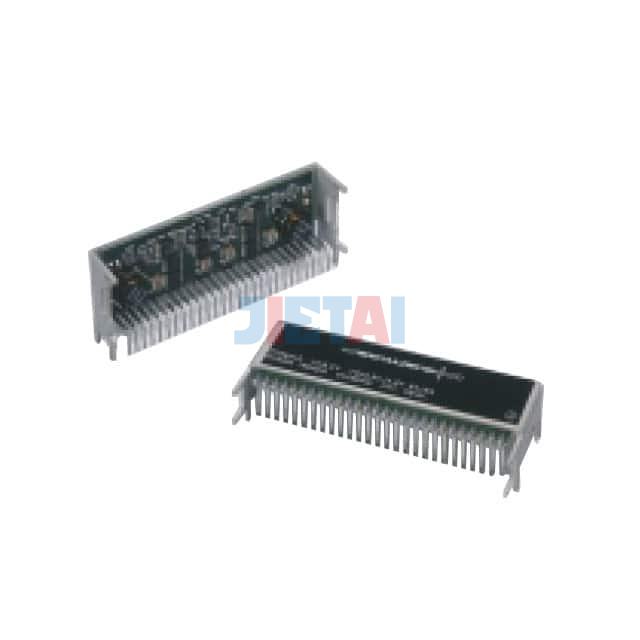

Images are for reference only
See Product Specifications

Product Specifications

Part Number PT6947A
Description DC DC CONVERTER 2.5V 1.5V
Manufacturer Texas Instruments
Series Excalibur™ PT6940
Part Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 2
Voltage - Input (Min) 3.1V
Voltage - Input (Max) 5.5V
Voltage - Output 1 2.5V
Voltage - Output 2 1.5V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 6A, 6A
Power (Watts) -
Voltage - Isolation -
Applications ITE (Commercial)
Features -
Operating Temperature -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole, Horizontal
Package / Case 27-SIP Module, Horizontal
Size / Dimension 3.00" L x 1.19" W x 0.50" H (76.2mm x 30.2mm x 12.7mm)
Supplier Device Package -
Control Features -
