Product Introduction
DR1040-101-R
- Part Number
- DR1040-101-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 100UH 1.25A 304 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- DR1040
- Quantity
- 1830pcs Stock Available.

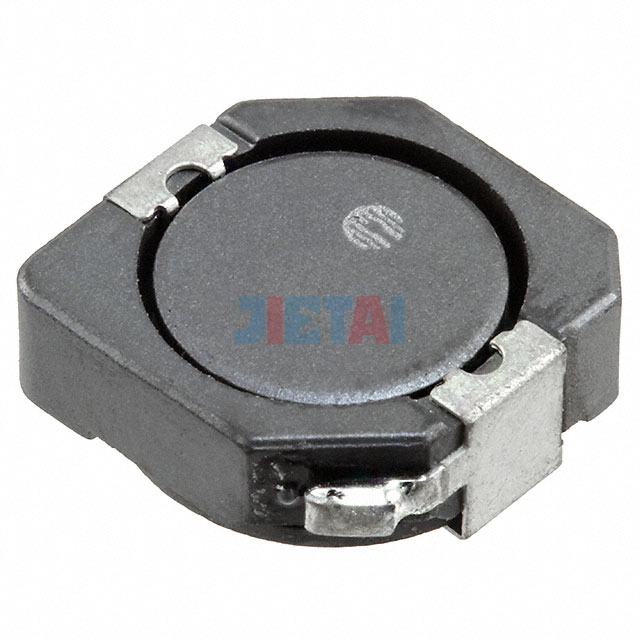

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | DR1040-101-R |
| Datasheet | DR1040-101-R datasheet |
| Description | FIXED IND 100UH 1.25A 304 MOHM |
| Manufacturer | Eaton - Electronics Division |
| Series | DR1040 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 100µH |
| Tolerance | ±30% |
| Current Rating | 1.25A |
| Current - Saturation | 1.35A |
| Shielding | Shielded |
| DC Resistance (DCR) | 304 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.413" L x 0.406" W (10.50mm x 10.30mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
