Product Introduction
LQH32DN3R3M23L
- Part Number
- LQH32DN3R3M23L
- Manufacturer/Brand
- Murata Electronics North America
- Description
- FIXED IND 3.3UH 530MA 260 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LQH32
- Quantity
- 9pcs Stock Available.

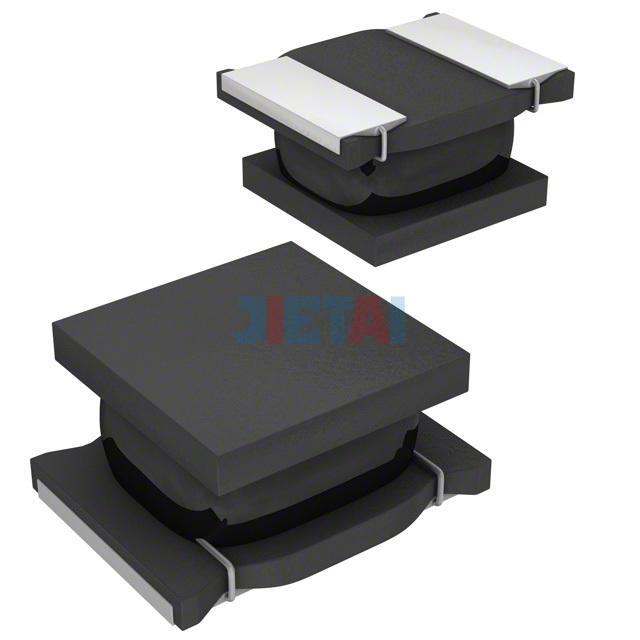

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LQH32DN3R3M23L |
| Datasheet | LQH32DN3R3M23L datasheet |
| Description | FIXED IND 3.3UH 530MA 260 MOHM |
| Manufacturer | Murata Electronics North America |
| Series | LQH32 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3µH |
| Tolerance | ±20% |
| Current Rating | 530mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 260 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 50MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
