Product Introduction
UPB2E221MHD
- Part Number
- UPB2E221MHD
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 220UF 20 250V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UPB
- Quantity
- 3521pcs Stock Available.

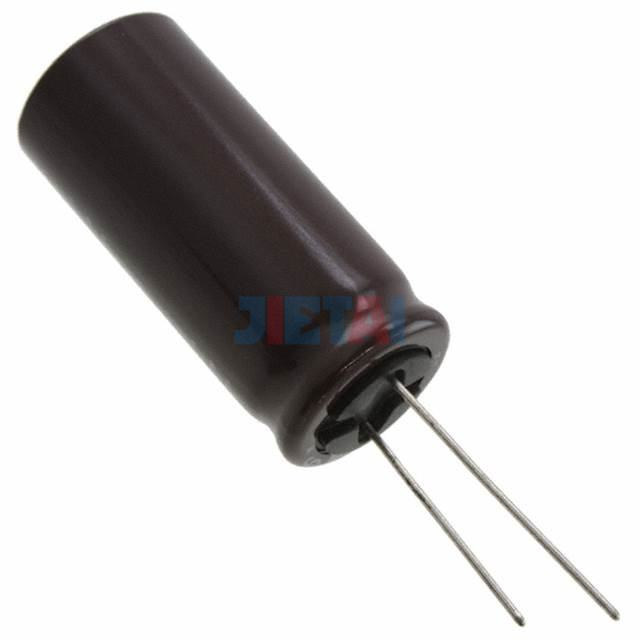

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UPB2E221MHD |
| Datasheet | UPB2E221MHD datasheet |
| Description | CAP ALUM 220UF 20 250V RADIAL |
| Manufacturer | Nichicon |
| Series | UPB |
| Part Status | Obsolete |
| Capacitance | 220µF |
| Tolerance | ±20% |
| Voltage - Rated | 250V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950mA @ 120Hz |
| Ripple Current @ High Frequency | 1.9A @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
