Product Introduction
HPC12JB8R20
- Part Number
- HPC12JB8R20
- Manufacturer/Brand
- Stackpole Electronics Inc
- Description
- RES 8.2 OHM 5 5W 5048 WIDE
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HPC
- Quantity
- 9961pcs Stock Available.

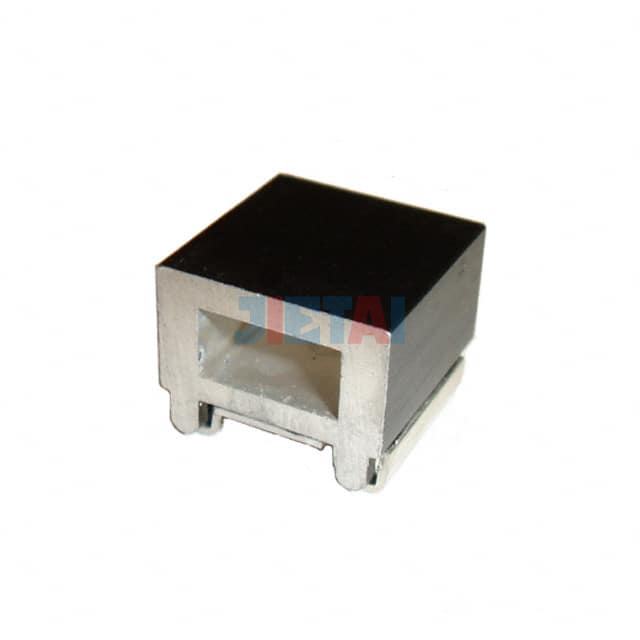

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HPC12JB8R20 |
| Datasheet | HPC12JB8R20 datasheet |
| Description | RES 8.2 OHM 5 5W 5048 WIDE |
| Manufacturer | Stackpole Electronics Inc |
| Series | HPC |
| Part Status | Obsolete |
| Resistance | 8.2 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 5W |
| Composition | Thick Film |
| Features | Non-Inductive, Pulse Withstanding |
| Temperature Coefficient | ±150ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 5048 (127122 Metric) 4850 J-Lead |
| Supplier Device Package | SMD |
| Size / Dimension | 0.480" L x 0.500" W (12.19mm x 12.70mm) |
| Height - Seated (Max) | 0.400" (10.16mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
