Home / Products / Inductors, Coils, Chokes / Fixed Inductors / UP1B-100-R
Product Introduction
UP1B-100-R
- Part Number
- UP1B-100-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 10UH 1.5A 110.7 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UNI-PAC™
- Quantity
- 8262pcs Stock Available.

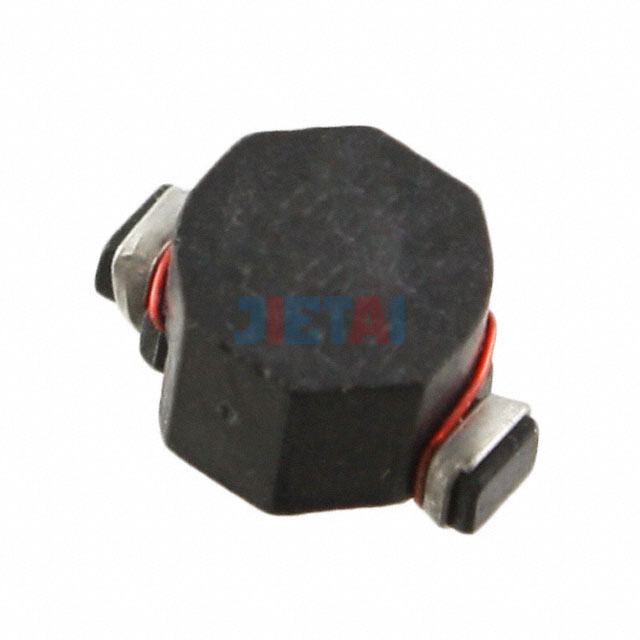

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UP1B-100-R |
| Datasheet | UP1B-100-R datasheet |
| Description | FIXED IND 10UH 1.5A 110.7 MOHM |
| Manufacturer | Eaton - Electronics Division |
| Series | UNI-PAC™ |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 10µH |
| Tolerance | ±20% |
| Current Rating | 1.5A |
| Current - Saturation | 1.9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 110.7 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.350" L x 0.240" W (8.89mm x 6.10mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
