Product Introduction
HJ1S050HA1R6000
- Part Number
- HJ1S050HA1R6000
- Manufacturer/Brand
- JAE Electronics
- Description
- CONN RCPT 50P 0.016 GOLD SMD R/A
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HJ1
- Quantity
- 14pcs Stock Available.

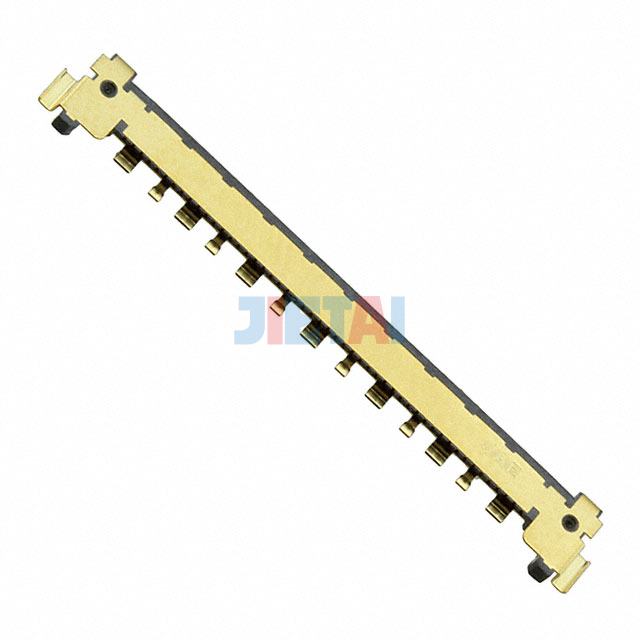

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HJ1S050HA1R6000 |
| Datasheet | HJ1S050HA1R6000 datasheet |
| Description | CONN RCPT 50P 0.016 GOLD SMD R/A |
| Manufacturer | JAE Electronics |
| Series | HJ1 |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Outer Shroud Contact |
| Style | Board to Cable/Wire |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.016" (0.40mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.035" (0.90mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Shielded, Solder Retention |
| Current Rating | 1A per Contact |
| Voltage Rating | 100V |
