Home / Products / Capacitors / Aluminum Electrolytic Capacitors / LNK2W472MSEH
Product Introduction
LNK2W472MSEH
- Part Number
- LNK2W472MSEH
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 4700UF 20 450V SCREW
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LNK
- Quantity
- 112pcs Stock Available.

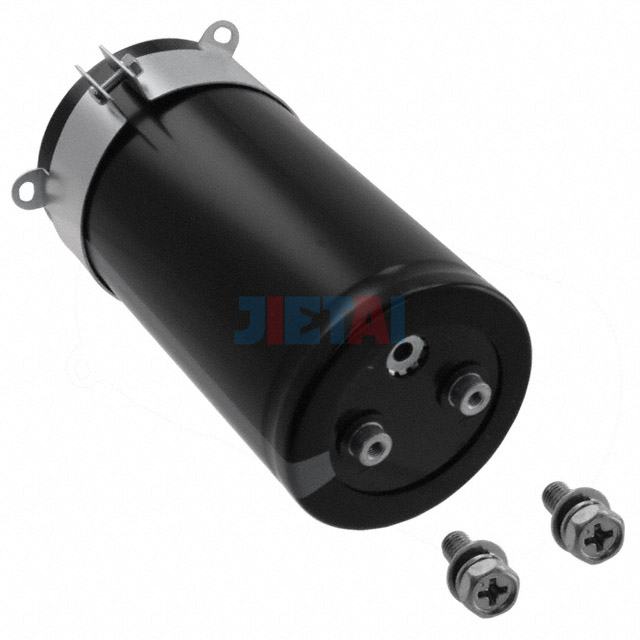

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LNK2W472MSEH |
| Datasheet | LNK2W472MSEH datasheet |
| Description | CAP ALUM 4700UF 20 450V SCREW |
| Manufacturer | Nichicon |
| Series | LNK |
| Part Status | Active |
| Capacitance | 4700µF |
| Tolerance | ±20% |
| Voltage - Rated | 450V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15.1A @ 120Hz |
| Ripple Current @ High Frequency | 21.14A @ 10kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.528" (115.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
