Product Introduction
SRN3012TA-2R2M
- Part Number
- SRN3012TA-2R2M
- Manufacturer/Brand
- Bourns Inc.
- Description
- FIXED IND 2.2UH 1.7A 80 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SRN3012TA
- Quantity
- 8110pcs Stock Available.

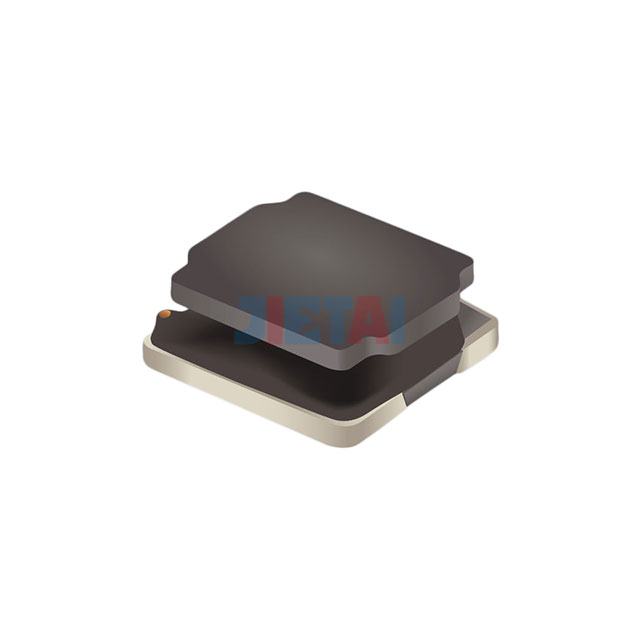

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SRN3012TA-2R2M |
| Datasheet | SRN3012TA-2R2M datasheet |
| Description | FIXED IND 2.2UH 1.7A 80 MOHM SMD |
| Manufacturer | Bourns Inc. |
| Series | SRN3012TA |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2µH |
| Tolerance | ±20% |
| Current Rating | 1.7A |
| Current - Saturation | 1.5A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 80 mOhm |
| Q @ Freq | 15 @ 1MHz |
| Frequency - Self Resonant | 90MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
