Product Introduction
LPC11U68JBD100E
- Part Number
- LPC11U68JBD100E
- Manufacturer/Brand
- NXP USA Inc.
- Description
- IC MCU 32BIT 256KB FLASH 100LQFP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LPC11Uxx
- Quantity
- 4860pcs Stock Available.

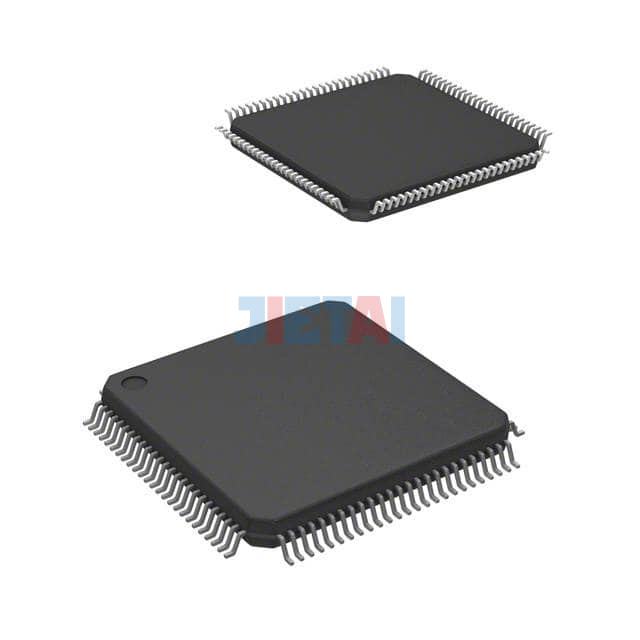

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LPC11U68JBD100E |
| Datasheet | LPC11U68JBD100E datasheet |
| Description | IC MCU 32BIT 256KB FLASH 100LQFP |
| Manufacturer | NXP USA Inc. |
| Series | LPC11Uxx |
| Part Status | Active |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 50MHz |
| Connectivity | I²C, Microwire, SPI, SSI, SSP, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 80 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 36K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 100-LQFP |
| Base Part Number | 100-LQFP (14x14) |
