Product Introduction
HC3-R50-R
- Part Number
- HC3-R50-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 500NH 78A 0.42 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HC3
- Quantity
- 593pcs Stock Available.

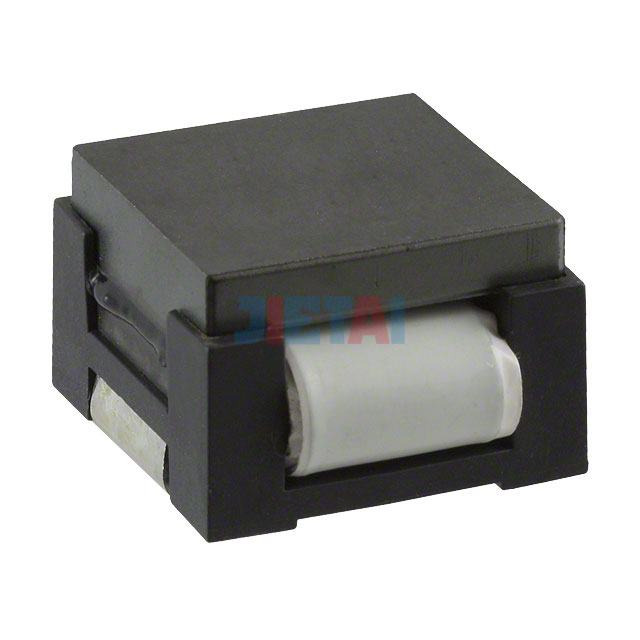

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HC3-R50-R |
| Datasheet | HC3-R50-R datasheet |
| Description | FIXED IND 500NH 78A 0.42 MOHM |
| Manufacturer | Eaton - Electronics Division |
| Series | HC3 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 500nH |
| Tolerance | ±20% |
| Current Rating | 78A |
| Current - Saturation | 120A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.42 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 300kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.181" L x 0.996" W (30.00mm x 25.30mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
