Product Introduction
EXV107M035A9MAA
- Part Number
- EXV107M035A9MAA
- Manufacturer/Brand
- KEMET
- Description
- CAP ALUM 100UF 20 35V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- EXV
- Quantity
- 5101pcs Stock Available.

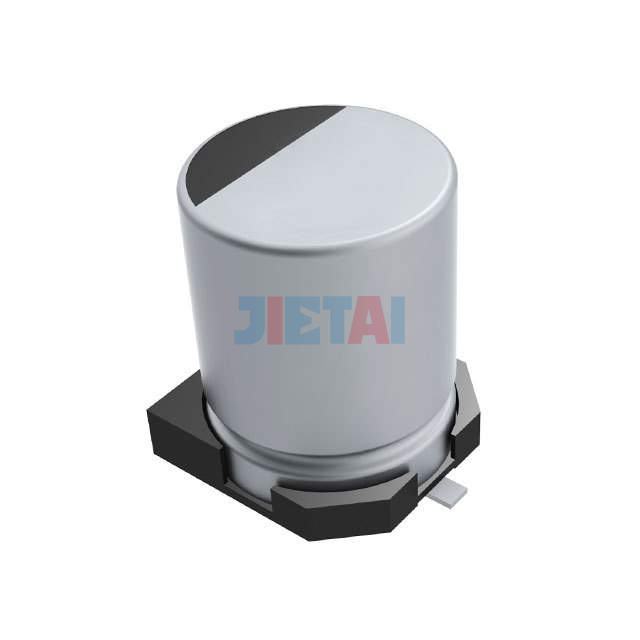

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EXV107M035A9MAA |
| Datasheet | EXV107M035A9MAA datasheet |
| Description | CAP ALUM 100UF 20 35V SMD |
| Manufacturer | KEMET |
| Series | EXV |
| Part Status | Active |
| Capacitance | 100µF |
| Tolerance | ±20% |
| Voltage - Rated | 35V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 420mA @ 120Hz |
| Ripple Current @ High Frequency | 600mA @ 100kHz |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.394" W (8.30mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
