Product Introduction
09140010301
- Part Number
- 09140010301
- Manufacturer/Brand
- HARTING
- Description
- CONN BASE BOTTOM ENTRY
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Han-Modular® Compact
- Quantity
- 210pcs Stock Available.

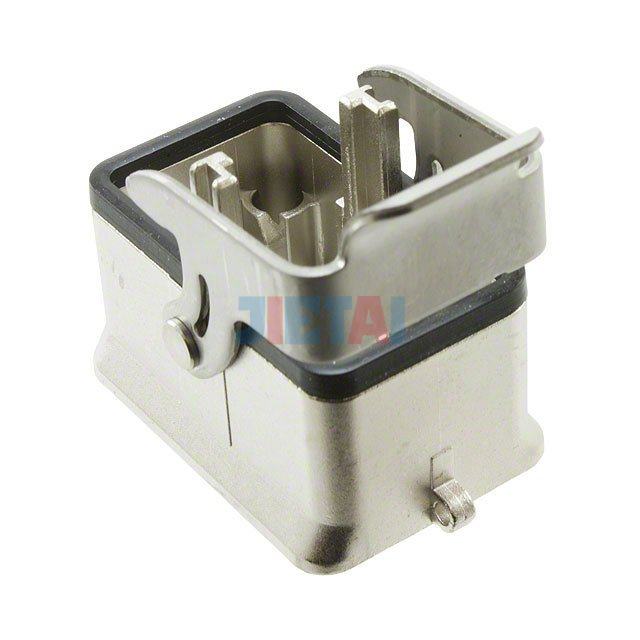

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 09140010301 |
| Datasheet | 09140010301 datasheet |
| Description | CONN BASE BOTTOM ENTRY |
| Manufacturer | HARTING |
| Series | Han-Modular® Compact |
| Part Status | Active |
| Connector Type | Base - Panel Mount |
| Style | Bottom Entry |
| Size | - |
| Lock Location | Locking Clip (1) on Base Bottom |
| Thread Size | - |
| Size / Dimension | 1.929" L x 1.378" W x 1.059" H (49.00mm x 35.00mm x 26.90mm) |
| Housing Color | - |
| Features | Grounding Terminal |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Housing Material | Zinc, Die Cast |
| Housing Finish | Nickel |
| Operating Temperature | -40°C ~ 125°C |
