Product Introduction
UCL1A331MCL6GS
- Part Number
- UCL1A331MCL6GS
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 330UF 20 10V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UCL
- Quantity
- 626pcs Stock Available.

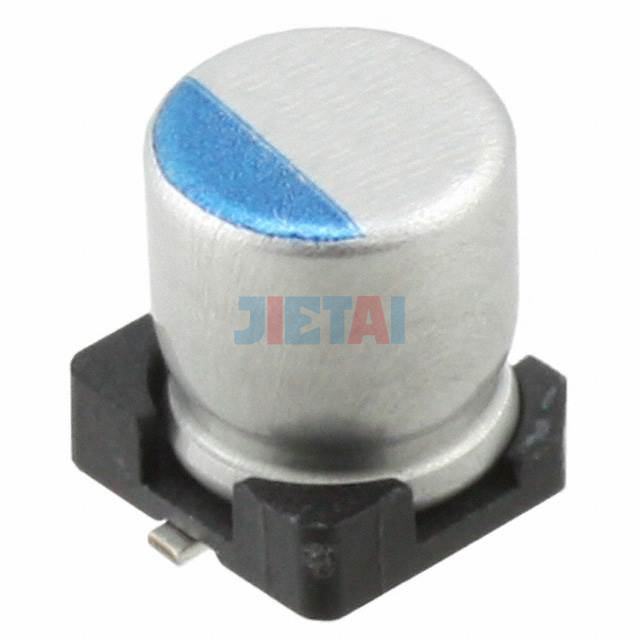

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UCL1A331MCL6GS |
| Datasheet | UCL1A331MCL6GS datasheet |
| Description | CAP ALUM 330UF 20 10V SMD |
| Manufacturer | Nichicon |
| Series | UCL |
| Part Status | Active |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 10V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 425mA @ 120Hz |
| Ripple Current @ High Frequency | 850mA @ 100kHz |
| Impedance | 100 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
