Product Introduction
ST80X-18S(30)
- Part Number
- ST80X-18S(30)
- Manufacturer/Brand
- Hirose Electric Co Ltd
- Description
- CONN HEADER SMD 18POS 1MM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- ST
- Quantity
- 4126pcs Stock Available.

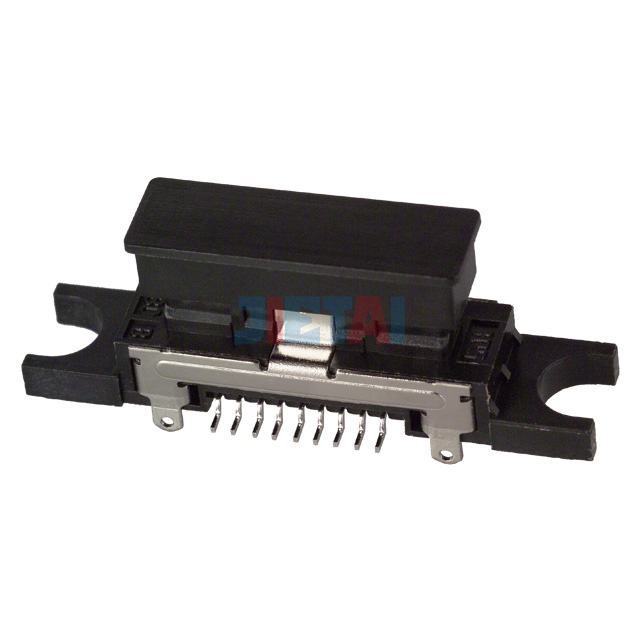

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ST80X-18S(30) |
| Datasheet | ST80X-18S(30) datasheet |
| Description | CONN HEADER SMD 18POS 1MM |
| Manufacturer | Hirose Electric Co Ltd |
| Series | ST |
| Part Status | Active |
| Connector Type | Plug, Cradle |
| Contact Type | Non-Gendered |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 18 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.378" (9.60mm) |
| Contact Shape | - |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Guide, Mounting Flange, Shielded |
| Operating Temperature | -30°C ~ 80°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating | 0.5A |
| Voltage Rating | 100V |
