Product Introduction
AXG7120J7
- Part Number
- AXG7120J7
- Manufacturer/Brand
- Panasonic Electric Works
- Description
- CONN SOCKET .6MM 12POS PWR TERM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- A35US
- Quantity
- 305pcs Stock Available.

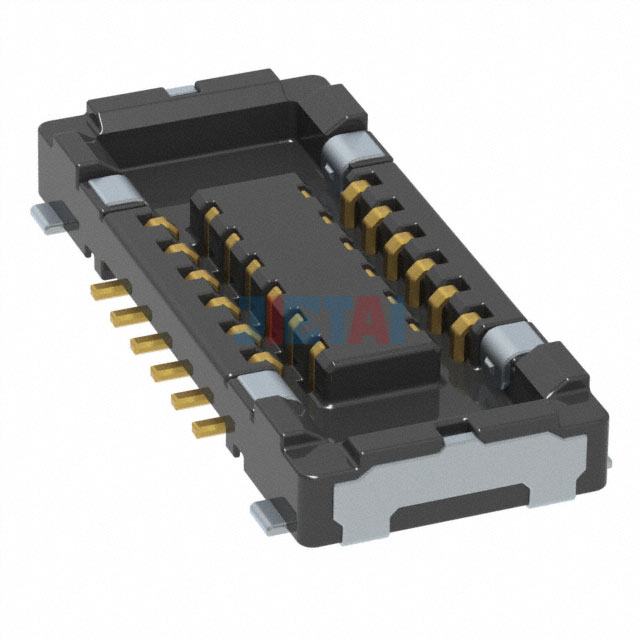

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | AXG7120J7 |
| Datasheet | AXG7120J7 datasheet |
| Description | CONN SOCKET .6MM 12POS PWR TERM |
| Manufacturer | Panasonic Electric Works |
| Series | A35US |
| Part Status | Not For New Designs |
| Connector Type | Socket, Center Strip Contacts |
| Number of Positions | 14 (12 + 2 Power) |
| Pitch | 0.014" (0.35mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Solder Retention |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Mated Stacking Heights | 0.6mm |
| Height Above Board | 0.023" (0.59mm) |
