Home / Products / Capacitors / Aluminum Electrolytic Capacitors / ELXV101ELL331ML30S
Product Introduction
ELXV101ELL331ML30S
- Part Number
- ELXV101ELL331ML30S
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 330UF 20 100V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LXV
- Quantity
- 2540pcs Stock Available.

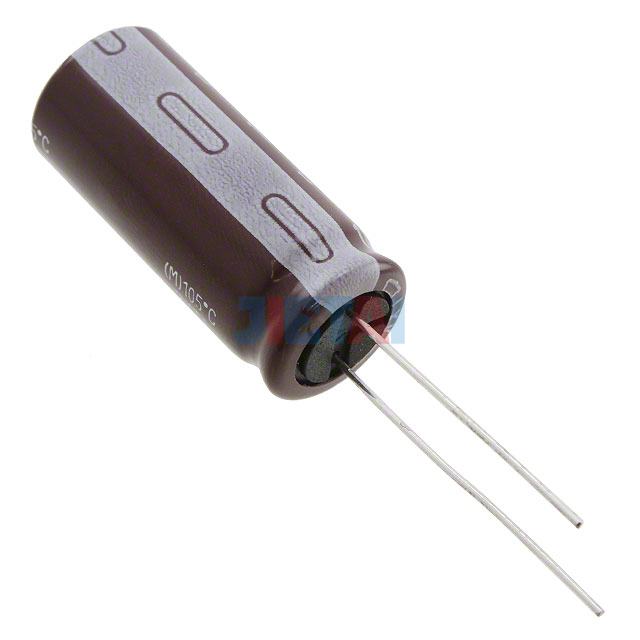

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ELXV101ELL331ML30S |
| Datasheet | ELXV101ELL331ML30S datasheet |
| Description | CAP ALUM 330UF 20 100V RADIAL |
| Manufacturer | United Chemi-Con |
| Series | LXV |
| Part Status | Active |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 100V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 895mA @ 120Hz |
| Ripple Current @ High Frequency | 1.79A @ 100kHz |
| Impedance | 58 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
