Product Introduction
HSMF-C158
- Part Number
- HSMF-C158
- Manufacturer/Brand
- Broadcom Limited
- Description
- LED AMBER/GREEN DIFF CHIP SMD
- Category
- LED Indication - Discrete
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 9pcs Stock Available.

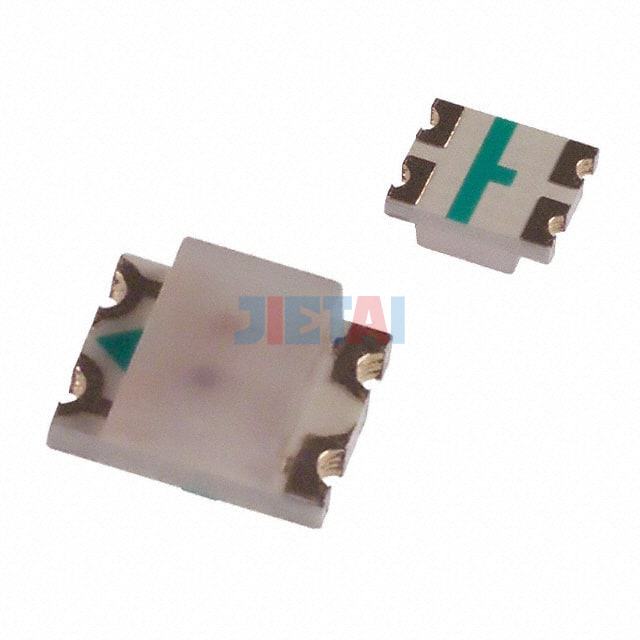

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HSMF-C158 |
| Datasheet | HSMF-C158 datasheet |
| Description | LED AMBER/GREEN DIFF CHIP SMD |
| Manufacturer | Broadcom Limited |
| Series | - |
| Part Status | Active |
| Color | Amber, Green |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 55mcd Amber, 45mcd Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.06mm x 2.70mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Amber, 2.1V Green |
| Current - Test | 20mA Amber, 20mA Green |
| Viewing Angle | 170° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 592nm Amber, 572nm Green |
| Wavelength - Peak | 595nm Amber, 570nm Green |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm |
