Product Introduction
AVS226M2AF24B-F
- Part Number
- AVS226M2AF24B-F
- Manufacturer/Brand
- Cornell Dubilier Electronics (CDE)
- Description
- CAP ALUM 22UF 20 100V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- AVS
- Quantity
- 1684pcs Stock Available.

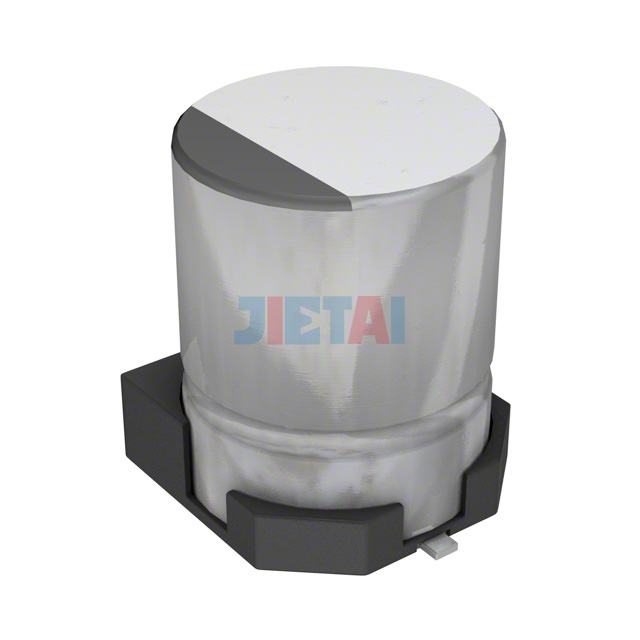

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | AVS226M2AF24B-F |
| Datasheet | AVS226M2AF24B-F datasheet |
| Description | CAP ALUM 22UF 20 100V SMD |
| Manufacturer | Cornell Dubilier Electronics (CDE) |
| Series | AVS |
| Part Status | Discontinued at Digi-Key |
| Capacitance | 22µF |
| Tolerance | ±20% |
| Voltage - Rated | 100V |
| ESR (Equivalent Series Resistance) | 13.6 Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 70mA @ 120Hz |
| Ripple Current @ High Frequency | 119mA @ 10kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
