Product Introduction

STB10NK60ZT4

Part Number
STB10NK60ZT4
Manufacturer/Brand
STMicroelectronics
Description
MOSFET N-CH 600V 10A D2PAK
Category
Transistors - FETs, MOSFETs - Single
RoHs Status
Lead free / RoHS Compliant
Series
SuperMESH™
Quantity
7436pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

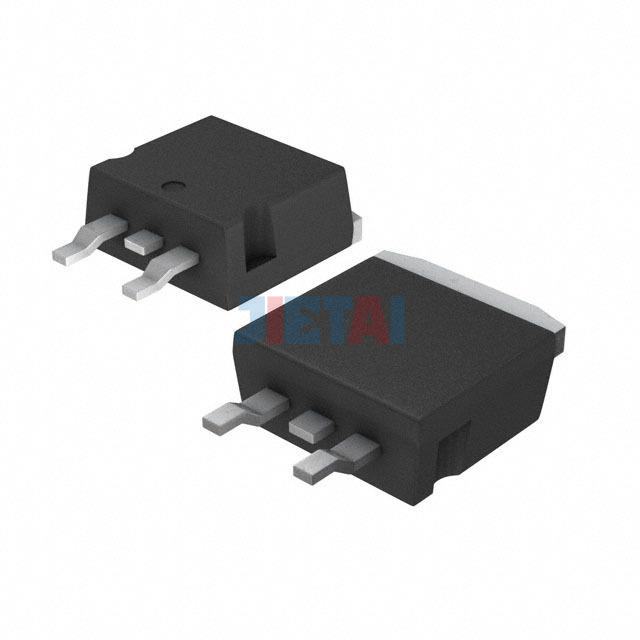

Images are for reference only
See Product Specifications

Product Specifications

Part Number STB10NK60ZT4
Datasheet STB10NK60ZT4 datasheet
Description MOSFET N-CH 600V 10A D2PAK
Manufacturer STMicroelectronics
Series SuperMESH™
Part Status Not For New Designs
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600V
Current - Continuous Drain (Id) @ 25°C 10A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 750 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id 4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 70nC @ 10V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 1370pF @ 25V
FET Feature -
Power Dissipation (Max) 115W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package D2PAK
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
