Product Introduction
SZESD7016MUTAG
- Part Number
- SZESD7016MUTAG
- Manufacturer/Brand
- ON Semiconductor
- Description
- TVS DIODE 5V 10V 8UDFN
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Automotive, AEC-Q101
- Quantity
- 4pcs Stock Available.

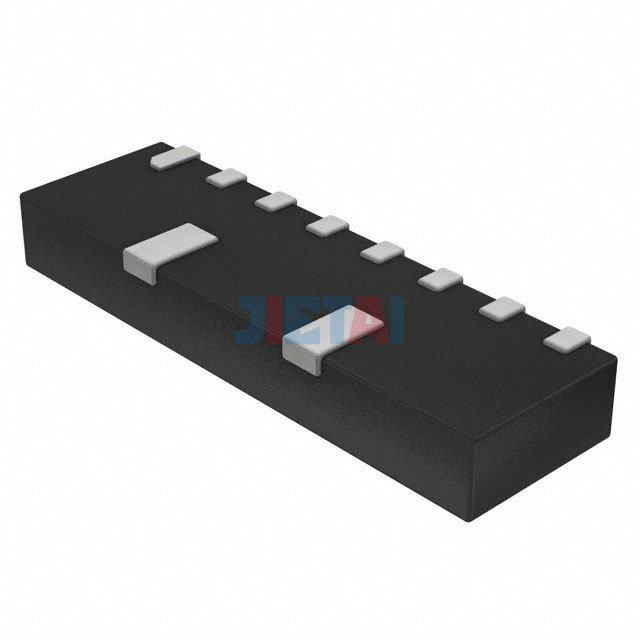

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SZESD7016MUTAG |
| Datasheet | SZESD7016MUTAG datasheet |
| Description | TVS DIODE 5V 10V 8UDFN |
| Manufacturer | ON Semiconductor |
| Series | Automotive, AEC-Q101 |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 8 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 10V |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | 0.15pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFDFN |
| Supplier Device Package | 8-UDFN (3.3x1.0) |
