Product Introduction
NRS5024T220MMGJV
- Part Number
- NRS5024T220MMGJV
- Manufacturer/Brand
- Taiyo Yuden
- Description
- INDUCTOR SMD POWER 22 UH20 T
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- NR, S Type
- Quantity
- 5152pcs Stock Available.

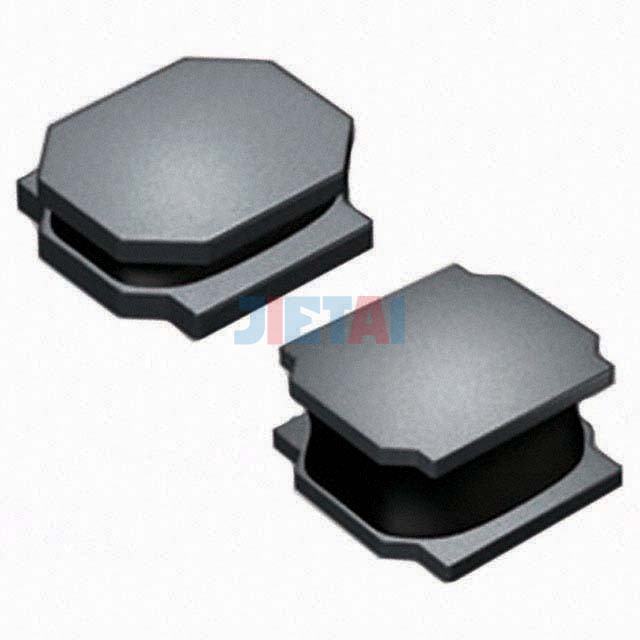

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NRS5024T220MMGJV |
| Datasheet | NRS5024T220MMGJV datasheet |
| Description | INDUCTOR SMD POWER 22 UH20 T |
| Manufacturer | Taiyo Yuden |
| Series | NR, S Type |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 22µH |
| Tolerance | ±20% |
| Current Rating | 820mA |
| Current - Saturation | 1.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 276 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 15MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.193" L x 0.193" W (4.90mm x 4.90mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
