Product Introduction
CPDQC24VE-HF
- Part Number
- CPDQC24VE-HF
- Manufacturer/Brand
- Comchip Technology
- Description
- TVS DIODE 24V 46V 0402C/SOD923F
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 8pcs Stock Available.

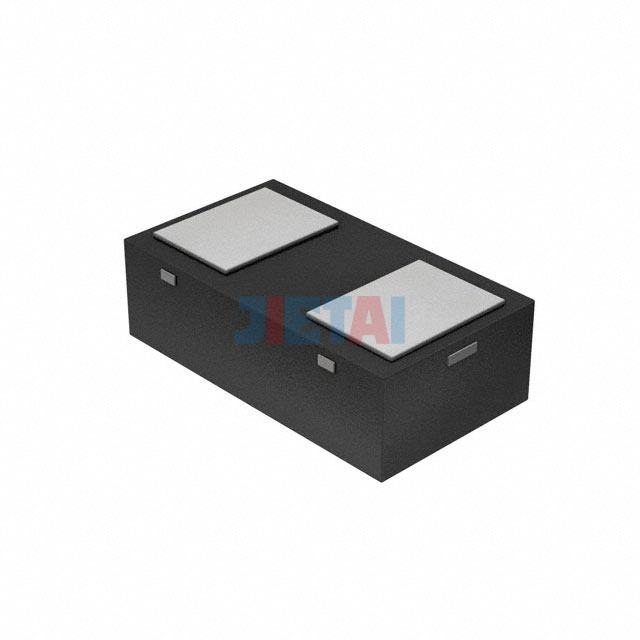

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CPDQC24VE-HF |
| Datasheet | CPDQC24VE-HF datasheet |
| Description | TVS DIODE 24V 46V 0402C/SOD923F |
| Manufacturer | Comchip Technology |
| Series | - |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | - |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Voltage - Breakdown (Min) | 26.5V |
| Voltage - Clamping (Max) @ Ipp | 46V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | 138W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 13pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | 0402C/SOD-923F |
