Product Introduction
PF0805FRM7W0R01L
- Part Number
- PF0805FRM7W0R01L
- Manufacturer/Brand
- Yageo
- Description
- RES 0.01 OHM 1 1/4W 0805
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- PF
- Quantity
- 44133pcs Stock Available.

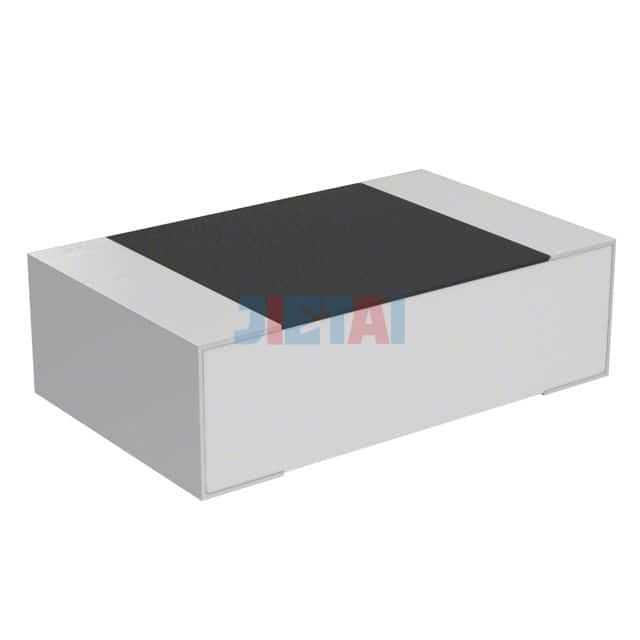

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PF0805FRM7W0R01L |
| Datasheet | PF0805FRM7W0R01L datasheet |
| Description | RES 0.01 OHM 1 1/4W 0805 |
| Manufacturer | Yageo |
| Series | PF |
| Part Status | Active |
| Resistance | 10 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Metal Foil |
| Features | Current Sense, Moisture Resistant |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.080" L x 0.050" W (2.03mm x 1.27mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
