Product Introduction

SD3814-151-R

Part Number
SD3814-151-R
Manufacturer/Brand
Eaton - Electronics Division
Description
FIXED IND 150UH 191MA 4.359 OHM
Category
Fixed Inductors
RoHs Status
Lead free / RoHS Compliant
Series
SD38
Quantity
5715pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

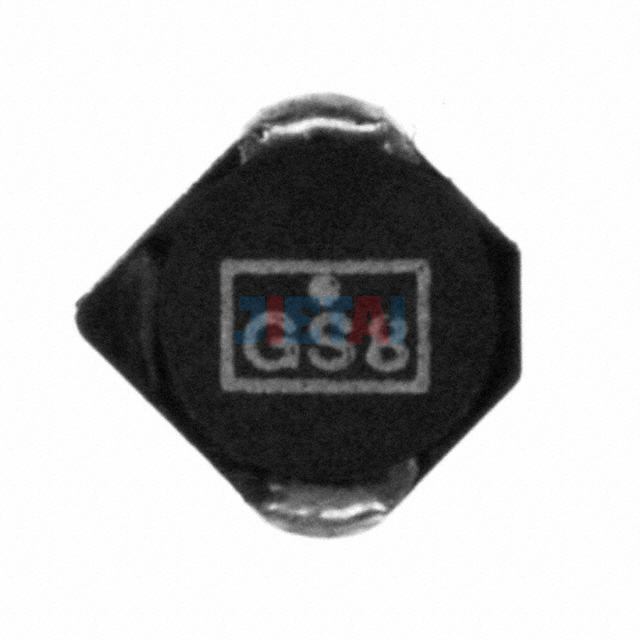

Images are for reference only
See Product Specifications

Product Specifications

Part Number SD3814-151-R
Datasheet SD3814-151-R datasheet
Description FIXED IND 150UH 191MA 4.359 OHM
Manufacturer Eaton - Electronics Division
Series SD38
Part Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 150µH
Tolerance ±15%
Current Rating 191mA
Current - Saturation 219mA
Shielding Shielded
DC Resistance (DCR) 4.359 Ohm
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -40°C ~ 85°C
Inductance Frequency - Test 100kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.055" (1.40mm)
