Product Introduction
HC9-330-R
- Part Number
- HC9-330-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 33UH 4.42A 48.8 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HC9
- Quantity
- 3744pcs Stock Available.

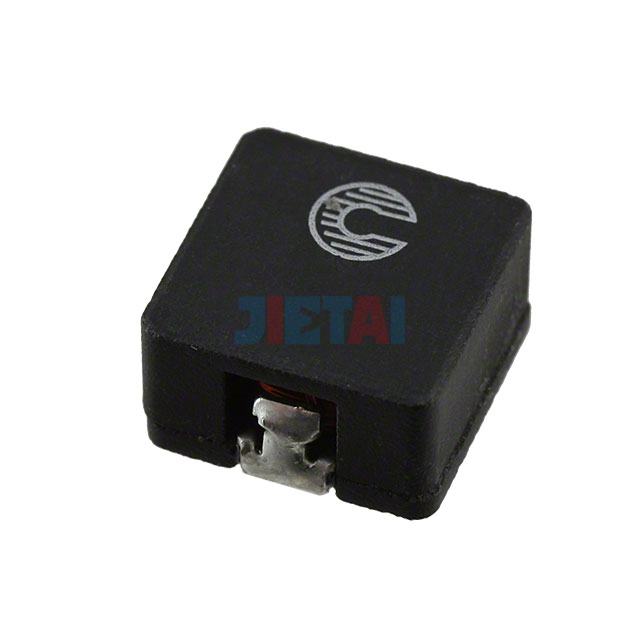

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HC9-330-R |
| Datasheet | HC9-330-R datasheet |
| Description | FIXED IND 33UH 4.42A 48.8 MOHM |
| Manufacturer | Eaton - Electronics Division |
| Series | HC9 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Iron Powder |
| Inductance | 33µH |
| Tolerance | ±15% |
| Current Rating | 4.42A |
| Current - Saturation | 7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 48.8 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.555" L x 0.516" W (14.10mm x 13.10mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
